Ref.Model No. GEP220g-3.5-12

      - Housing diameter:            Ø230h6

- Max speed:                            3500rpm.

- Tool Shank:                                       Key and Bolting.

- Power(S1) & Torque(S1):  12kW(정격)/57Nm(정격)/66A(정격)

       -Motor : Asynchronous, 220Vac, 8poles, 233Hz. 2211Kcal/hr

       -Grease lubrication.

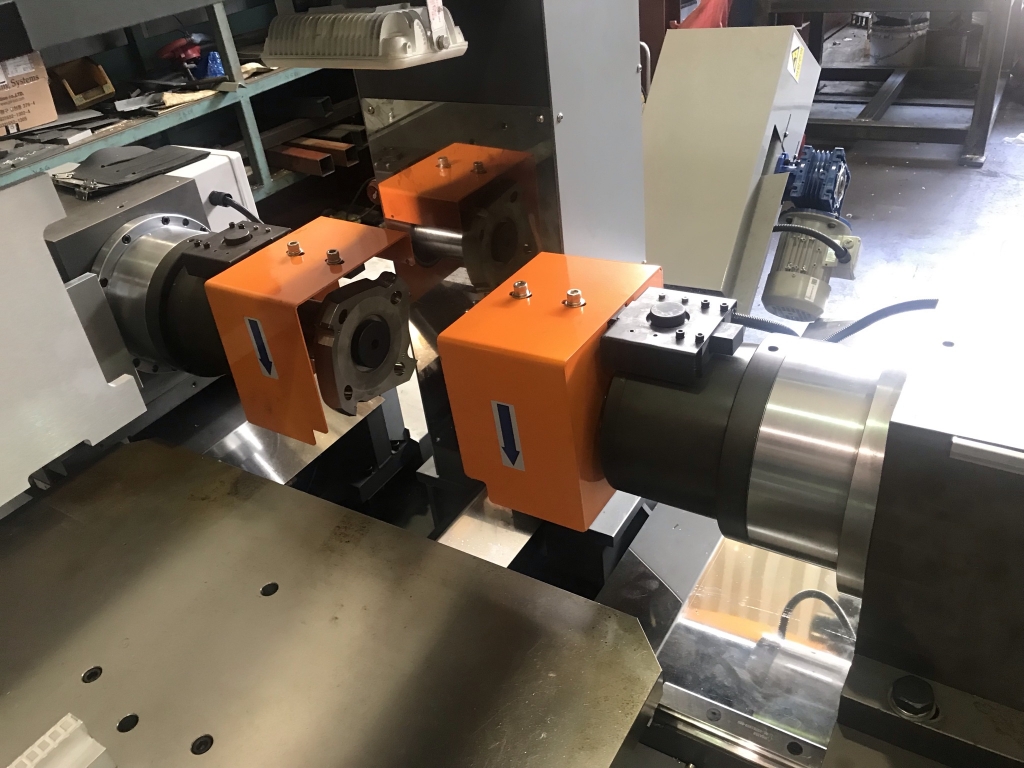

Application : High speed side cutting machine with Dual head.
