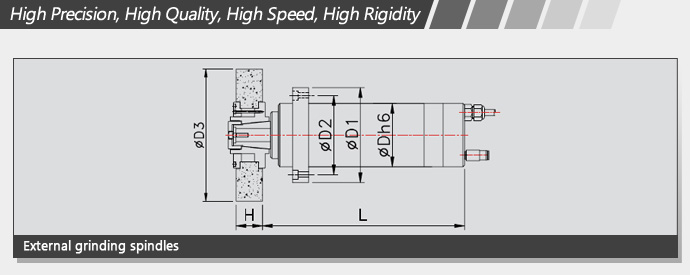

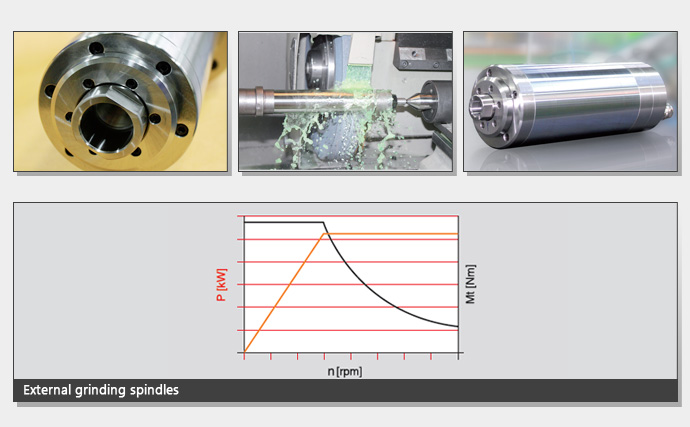

Designation 型 号 Dimensions(mm) 外形尺寸(mm) Model No. D D1 D2 D3 L H EGS150g-06-7.5 150 185 168 300 400 65 EGS170g-08-8.5 170 205 188 350 533 40 EGS220g-05-30 220 262 240 450 698 40 EGS240g-04-18 240 282 260 508 790 80 EGS240a-08-15 240 282 260 400 464 40 EGS240a-08-30 240 282 260 400 535 40 EGS250a-09-36 250 300 275 500 725 80 EGS260g-06-18 260 302 280 400 850 240 EGS280g-03-22 280 330 302 500 650 100 EGS350g-02-48 350 410 380 700 1000 100 EGS380g-01-60 380 450 416 800 1000 150 ※ Concept phase of the standard series, subject to technical and dimensional modifications. Bearing lubrication 轴承润滑 Max. Speed 最大速度 Operating mode 运转模式 S6 60% 2min Speed 速 度 Output 功 率 Torque 扭 矩 [rpm] [rpm] [kW] [Nm] Grease 6,000 - 7.5 12 Grease 8,000 2,000 8.5 40 Grease 5,000 3,000 30 95 Grease 4,000 1,900 18 90 Oil-Air 8,000 5,700 15 25 Oil-Air 8,000 5,700 30 47 Oil-Air 9,000 3,000 36 114 Grease 6,000 1,500 18 114 Grease 3,000 1,500 22 458 Grease 2,000 1,000 48 458 Grease 1,200 1,000 60 573
