Designation
型 号 |

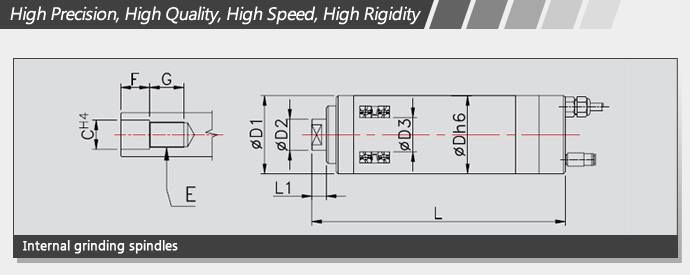

Dimensions(mm)
外形尺寸(mm) |
HSK |
Housing Type Spindle
Housing 类型 主轴 |
| Model No. |
D |
D1 |
D2 |
D3 |
L |
L1 |
C |
E |
F |
G |
Type |
| IGS080a-50-0.7 |
80 |
|
9 |
10 |
200 |
5 |
5 |
M5 × 0.8 |
7 |
9 |
|
| IGS080a-40-2.0 |
80 |
|
11 |
12 |
200 |
5 |
6 |
M6 × 1 |
9 |
11 |
|
| IGS080g-30-3.0 |
80 |
|
14 |
15 |
210 |
5 |
8 |
M8 × 1.25 |
12 |
14 |
|
| IGS100a-40-2.0 |
100 |
65 |
14 |
15 |
209 |
6 |
8 |
M8 × 1.25 |
12 |
14 |
|
| IGS100a-30-3.0 |
100 |
65 |
16 |
17 |
216 |
6 |
9 |
M9 × 1.25 |
13 |
14 |
|
| IGS100g-24-5.0 |
100 |
71 |
18 |
20 |
250 |
8 |
10 |
M10 × 1.5 |
15 |
19 |
|
| IGS120a-40-3.0 |
120 |
77 |
23 |
25 |
279 |
9 |
14 |
M14 × 1.5 |
21 |
19 |
|
| IGS120a-30-5.0 |
120 |
98 |
28 |
30 |
309 |
9 |
16 |
M16 × 1.5 |
24 |
19 |
HSK-C25 |
| IGS120g-24-7.0 |
120 |
98 |
38 |
40 |
335 |
11 |
22 |
M22 × 2 |
34 |
25 |
HSK-C32 |
| IGS150a-40-9.0 |
150 |
98 |
38 |
40 |
313 |
11 |
22 |
M22 × 2 |
34 |
25 |
HSK-C32 |
| IGS150a-30-15.0 |
150 |
120 |
53 |
55 |
382 |
14 |
32 |
M32 × 2 |
46 |
25 |
HSK-C50 |
| IGS150a-24-21.0 |
150 |
127 |
63 |
65 |
386 |
16 |
36 |
M36 × 2 |
50 |
25 |
HSK-C63 |
| IGS150a-18-15.0 |
150 |
127 |
63 |
65 |
386 |
16 |
36 |
M36 × 2 |
50 |
25 |
HSK-C63 |
| IGS170a-21-21.0 |
170 |
120 |
48 |
50 |
357 |
13 |
28 |
M28 × 2 |
42 |
25 |
HSK-C40 |
| IGS170a-19-25.0 |
170 |
120 |
53 |
55 |
379 |
14 |
32 |
M32 × 2 |
46 |
25 |
HSK-C50 |
| IGS170a-15-28.0 |
170 |
127 |
63 |
65 |
383 |
16 |
36 |
M36 × 2 |
50 |
25 |
HSK-C63 |
| IGS170a-10-30.0 |
170 |
140 |
68 |
70 |
419 |
18 |
36 |
M36 × 2 |
50 |
25 |
HSK-C63 |
|
| ※ Concet phase of the standard series, subject to technical and dimensional modifications. |
 |
|
Bearing
lubrication
轴承润滑 |
Operating mode
运转模式 |
S1 100% |

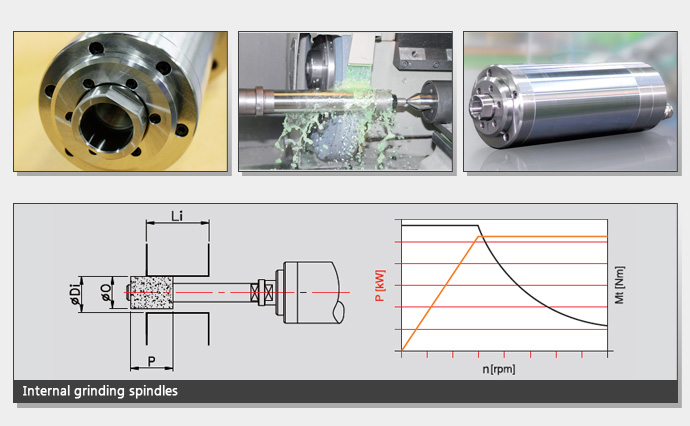

Tool dimensions(mm)
刀具尺寸(mm) |
Speed
速 度 |
Output
功 率 |
Torque
扭 矩 |
for bore holes
为 钻 孔 |
Abrasive wheels
磨削砂轮 |
| [rpm] |
[kW] |
[Nm] |
Di |
Li |
O |
P |
| Oil-air |
50,000 |
0.7 |
0.17 |
4 ~ 8 |
10 ~ 25 |
3.5 ~ 7 |
6 ~ 10 |
| Oil-air |
40,000 |
2 |
0.64 |
6 ~ 12 |
15 ~ 30 |
5 ~ 10 |
6 ~ 12 |
| Grease |
30,000 |
3 |
1.43 |
12 ~ 16 |
20 ~ 40 |
10 ~ 14 |
12 ~ 14 |
| Oil-air |
40,000 |
2 |
0.64 |
6 ~ 12 |
8 ~ 30 |
5 ~ 10 |
4 ~ 12 |
| Oil-air |
30,000 |
3 |
1.43 |
7 ~ 16 |
15 ~ 35 |
6 ~ 14 |
6 ~ 14 |
| Grease |
24,000 |
5 |
3.2 |
12 ~ 17 |
20 ~ 40 |
10 ~ 16 |
10 ~ 16 |
| Oil-air |
40,000 |
3 |
0.95 |
20 ~ 30 |
30 ~ 70 |
17 ~ 25 |
20 ~ 30 |
| Oil-air |
30,000 |
5 |
2.4 |
25 ~ 40 |
35 ~ 80 |
22 ~ 35 |
25 ~ 35 |
| Grease |
24,000 |
7 |
4.45 |
25 ~ 40 |
35 ~ 90 |
22 ~ 35 |
25 ~ 40 |
| Oil-air |
40,000 |
9 |
2.9 |
35 ~ 60 |
40 ~ 100 |
30 ~ 55 |
30 ~ 40 |
| Oil-air |
30,000 |
15 |
7.16 |
40 ~ 65 |
40 ~ 110 |
35 ~ 60 |
35 ~ 45 |
| Oil-air |
24,000 |
21 |
13.4 |
45 ~ 65 |
40 ~ 130 |
40 ~ 60 |
35 ~ 55 |
| Oil-air |
18,000 |
15 |
17.9 |
55 ~ 100 |
55 ~ 160 |
60 ~ 90 |
45 ~ 55 |
| Oil-air |
21,000 |
21 |
22.3 |
55 ~ 85 |
40 ~ 100 |
50 ~ 85 |
35 ~ 45 |
| Oil-air |
19,000 |
25 |
23.86 |
35 ~ 85 |
40 ~ 120 |
30 ~ 60 |
40 ~ 50 |
| Oil-air |
15,000 |
28 |
44.5 |
35 ~ 90 |
40 ~ 130 |
30 ~ 85 |
45 ~ 60 |
| Grease |
10,000 |
30 |
57.27 |
50 ~ 120 |
65 ~ 180 |
45 ~ 110 |
40 ~ 110 |
|
| |
| |
| |
|
|
|
|
|
